ZymoPURE Plasmid Miniprep Kit
HIGHLIGHTS

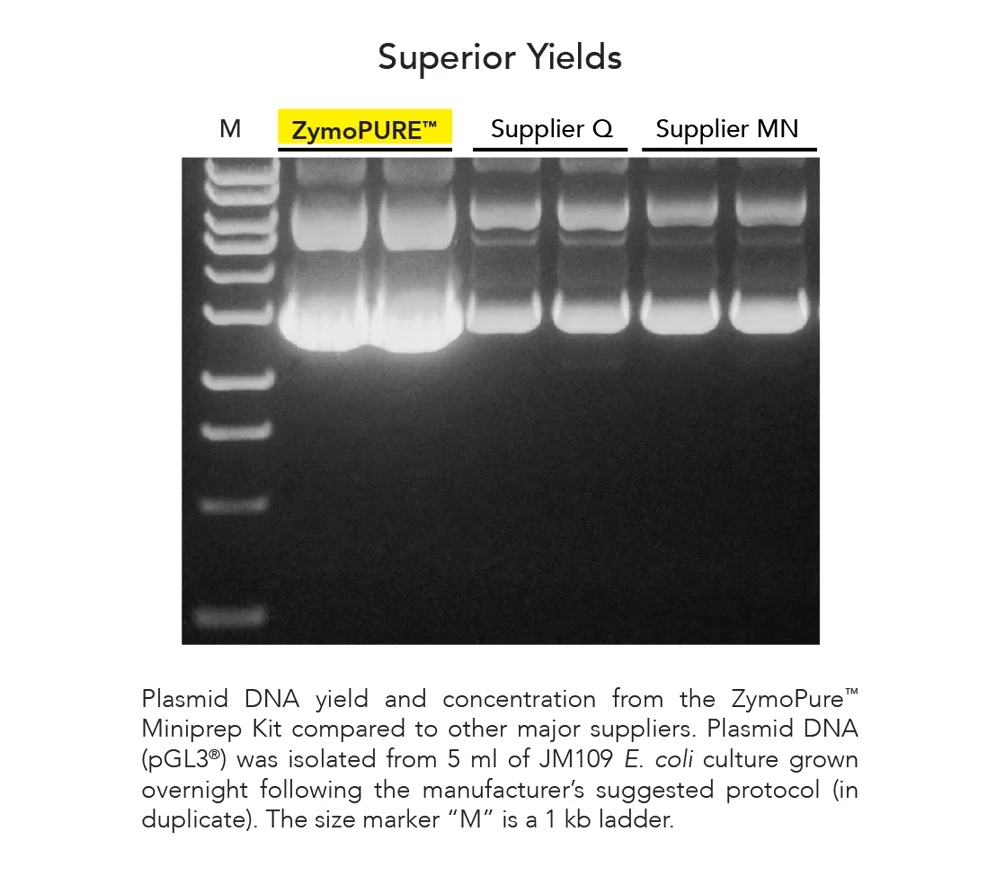

▶Highest Yield: Purify up to 100 µg of plasmid DNA in as little as 25 µl directly from a spin-column.

▶Transfection-Grade: 50,000 times fewer endotoxins than industry leading minipreps.

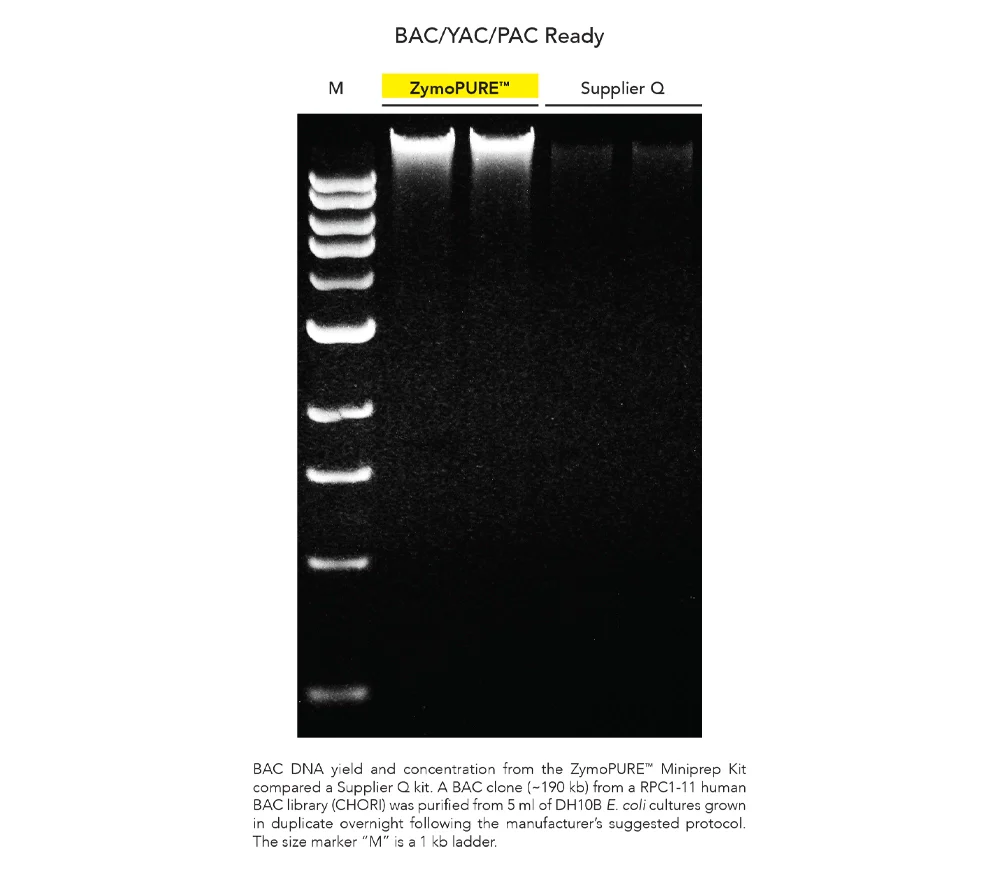

▶BAC/YAC/PAC Ready: Purify DNA up to ~200 kb.
서한형 대리

Zymo Research 제품 담당자

경신과학(주)

영업부

H.P) 010-8832-6303

HanHyung Seo

Zymo Research Brand Manager

Kyongshin scientific Co., Ltd.

Sales Department

H.P) 82)10-8832-6303

제품소개

ZymoPURE Plasmid Miniprep Kit Protocol:

HIGHLIGHTS

  • Highest Yield: Purify up to 100 µg of plasmid DNA in as little as 25 µl directly from a spin-column.
  • Transfection-Grade: 50,000 times fewer endotoxins than industry leading minipreps.
  • BAC/YAC/PAC Ready: Purify DNA up to ~200 kb.
DESCRIPTION

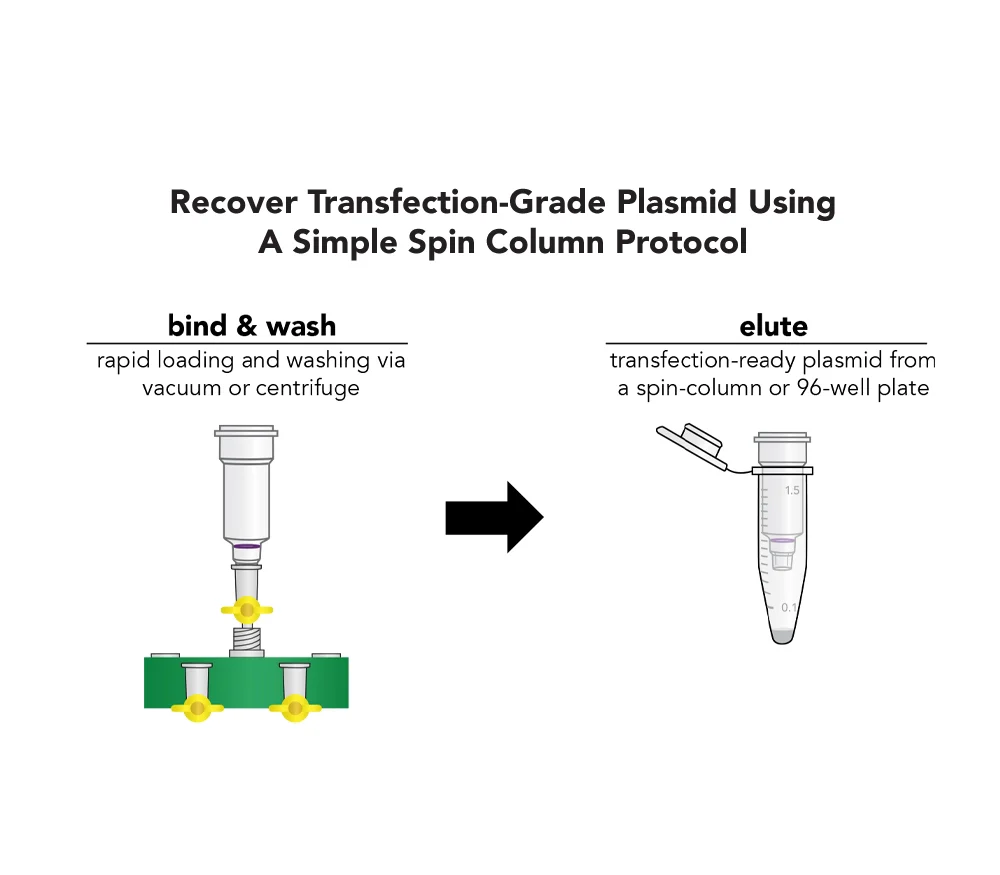

Part of the ZymoPURE™ Plasmid Kits collection, the ZymoPURE™ Plasmid Miniprep Kit features a spin column-based method for the purification of up to 100 µg of ultra-pure endotoxin-free plasmid DNA in less than 15 minutes. The unique spin-column design also provides zero buffer retention and a low elution volume. ZymoPURE™ technology uses a modified alkaline lysis method and features novel binding chemistry that yields highly concentrated plasmid DNA (up to 3 µg/µl). In addition, the wash regimen has been optimized to ensure the plasmid DNA is free of endotoxins, salt, protein, and RNA. The result is plasmid DNA suitable for transfection, restriction endonuclease digestion, bacterial transformation, PCR amplification, DNA sequencing, and other sensitive downstream applications. As an added convenience, the ZymoPURE™ Plasmid Miniprep Kit contains colored buffers that permit error-free visualization and identification of complete bacterial cell lysis and neutralization.

Learn More


Applicable ForTransfection, transformation, sequencing, restriction endonuclease digestion, in vitro transcription, in vivo studies, genome editing, and other sensitive applications.
Binding Capacity100 µg
Culture Input≤ 5 mL
Elution Volume25 µl
Endotoxin Levels≤ 1 EU/µg
EquipmentMicrocentrifuge and/or vacuum manifold
FormatSpin Column
Processing Time15 min
PurityTypical Abs 260/280 ≥1.8 and Abs 260/230≥ 2.0
Recommended Sample Volume≤ 5.0 ml
Size RangeUp to ~200 kb
YieldUp to 100 µg per preparation, depending on the plasmid copy number, culture growth conditions, and strain of E. coli utilized.

Q1: What is the composition of the ZymoPURE™ Elution buffer?

10 mM Tris-HCl, 0.1 mM EDTA, pH 8.5.

Q2: I ran out of ZymoPURE™ Wash 2. Can I substitute it with a homemade solution or Wash Buffer from another kit?

No, the ZymoPURE™ kits are only compatible with ZymoPURE™ Wash 2 and we cannot disclose a substitution due to the sensitive nature of the recipe. Additional ZymoPURE™ Wash 2 can be purchased separately.

Q3: What type of vacuum pump do you recommend?

The vacuum pump should be a single or double-staged unit capable of producing at least 400 mm Hg pressure at the vacuum manifold. If less pressure is applied, centrifuge the column prior to washing to remove any residual lysate/buffer remaining in the matrix.

Q4: Are the ZymoPURE kits compatible with any commercially available vacuum manifold?

Yes, any vacuum that uses standard luer-lock connectors is compatible.

Q5: Can an in-house vacuum line be used with the EZ Vac Vacuum Manifold?

Yes, however, the pressure needs to be around 400 mm Hg. Users should take caution, as the pressure of an in-house vacuum line can fluctuate drastically or be significantly reduced, depending on the demand in the building.

Q6: Can the ZymoPURE Kits be used with other bacteria?

Yes, please contact technical support for an application note.

Q7: Is there a protocol for low-copy number plasmid DNA?

Yes, we do have an application note for low-copy number plasmid available. Please contact technical support for a copy.

Q8: Can I process more than the recommended volume of bacterial culture or use enriched growth media?

Yes, however, more attention is required during the lysis and steps. We recommend centrifuging/pelleting the neutralized lysate before loading onto the supplied syringe/bottle-top filter. For high copy plasmids using more culture can cause overloading and subsequent clogging of columns, which can result in poor DNA yield and/or quality.

Q9: Can the ZymoPURE kits be used to isolate large plasmid constructs (BAC/PAC)?

Yes, the standard ZymoPURE protocol has been successfully tested with constructs up to 200 kb. To increase elution of large plasmid DNA, we recommend pre-warming the ZymoPURE Elution Buffer (50 ºC) and increasing the incubation time on column up to 10 minutes prior to centrifugation.








주문정보

CAT.No 품명 규격 비고
D4208T ZymoPURE Plasmid Miniprep Kit 10 preps
D4209 ZymoPURE Plasmid Miniprep Kit 50 preps
D4210 ZymoPURE Plasmid Miniprep Kit 100 preps
D4211 ZymoPURE Plasmid Miniprep Kit 400 preps
D4212 ZymoPURE Plasmid Miniprep Kit 800 preps
